YSAF3000 - Pneumatic Air Filter Series (Stainless Steel)

YSAF3000 - Pneumatic Air Filter Series (Stainless Steel)

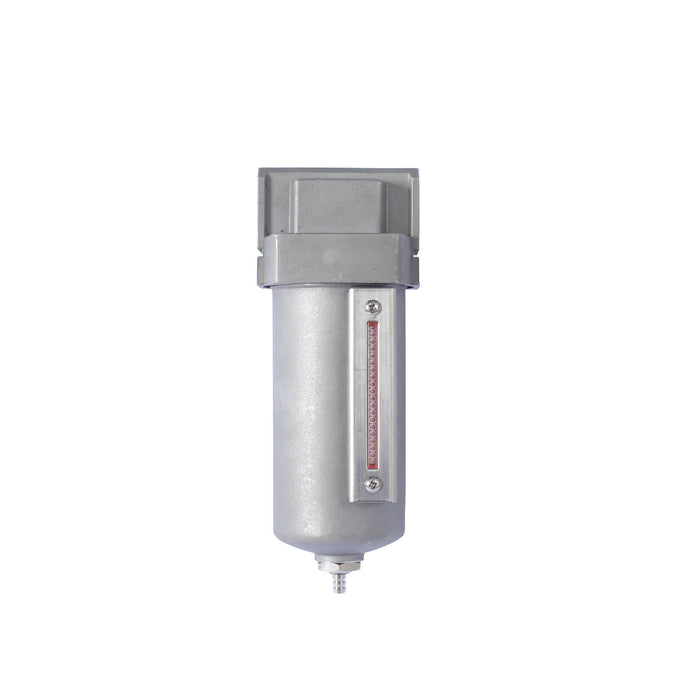

YSAF3000 - Pneumatic Air Filter Unit

Bore No. 02, 03
Port Size 1/4, 3/8
Fluid
 Air
Operating Pressure 0.05 ~ 1 MPa
Proof Pressure 1.5 MPa
Set Pressure Range 0.05 ~ 0.85 MPa
Ambient temperature -5 ~ +60℃
Filter Element Standard: 40μm, Option: [5μm, 20μm]
