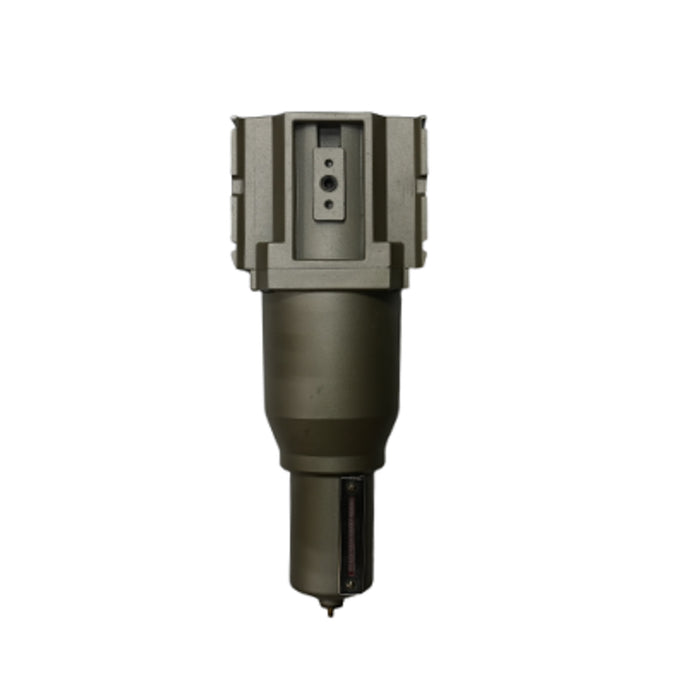

YSAF8000 - Pneumatic Air Filter Unit (Stainless Steel)

YSAF8000 - Pneumatic Air Filter Unit (Stainless Steel)

YSAF8000 - Pneumatic Air Filter Unit

Bore No. 10, 12, 16
Port Size 1 ¼, 1 ½, 2
Fluid
 Air
Operating Pressure 0.05 ~ 1 MPa
Proof Pressure 1.5 MPa
Set Pressure Range 0.05 ~ 0.85 MPa
Ambient temperature -5 ~ +60℃
Filter Element Standard: 40μm Option: [5μm, 20μm]
