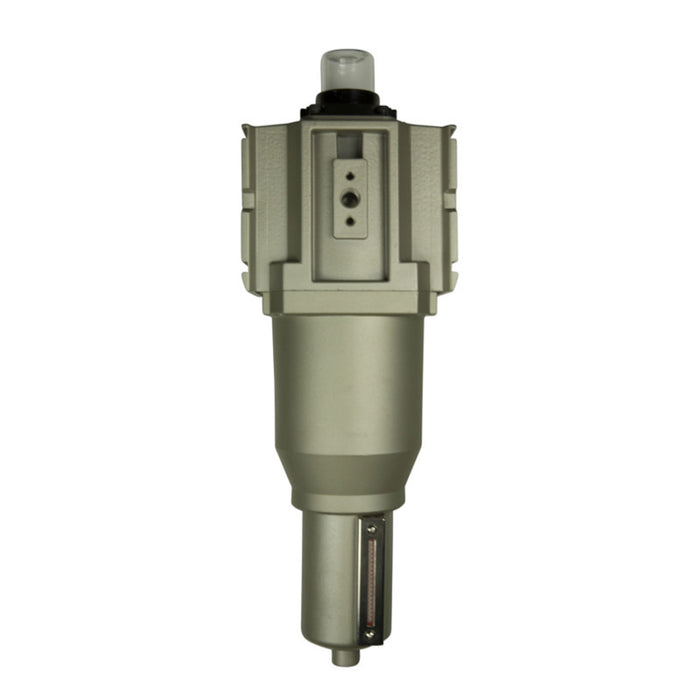

YAL8000 - Pneumatic Air Lubricator Unit
YAL8000 - Pneumatic Air Lubricator Combination Unit
| Bore No. | 10, 12, 16 |
| Port Size | 1 ¼, 1 ½, 2 |
| Fluid |
Air |
| Operating Pressure | 0.05 ~ 1 MPa |
| Proof Pressure | 1.5 MPa |
| Set Pressure Range | 0.05 ~ 0.85 MPa |
| Ambient temperature | -5 ~ +60℃ |
| Oil Capacity | 180 ml |
| Minimum Flow for Oil Drip |
190 ℓ/min, |
| Recommended Lubricating Oil | Class 1 turbine oil [ISO VG32] |
