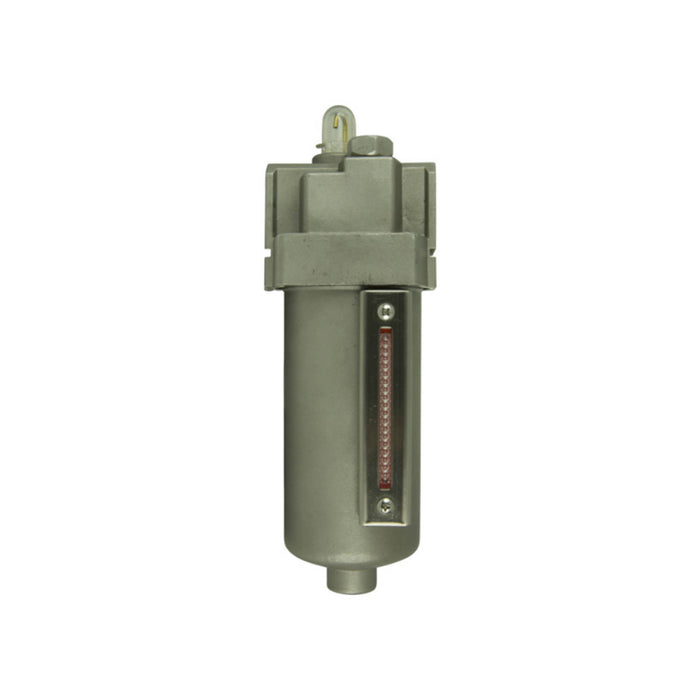

YSAL4000 - Pneumatic Air Lubricator Unit
YSAL4000 - Pneumatic Air Lubricator Combination Unit
| Bore No. | 03, 04, 06 |
| Port Size | 3/8, 1/2, 3/4 |
| Fluid |
Air |
| Operating Pressure | 0.05 ~ 1 MPa |
| Proof Pressure | 1.5 MPa |
| Set Pressure Range | 0.05 ~ 0.85 MPa |
| Ambient temperature | -5 ~ +60℃ |
| Oil Capacity | 55 ml |
| Minimum Flow for Oil Drip | Port Size 3/8: 40 ℓ/min, 1/2: 50 ℓ/min, 3/4: 50 ℓ/min, |
| Recommended Lubricating Oil | Class 1 turbine oil [ISO VG32] |
