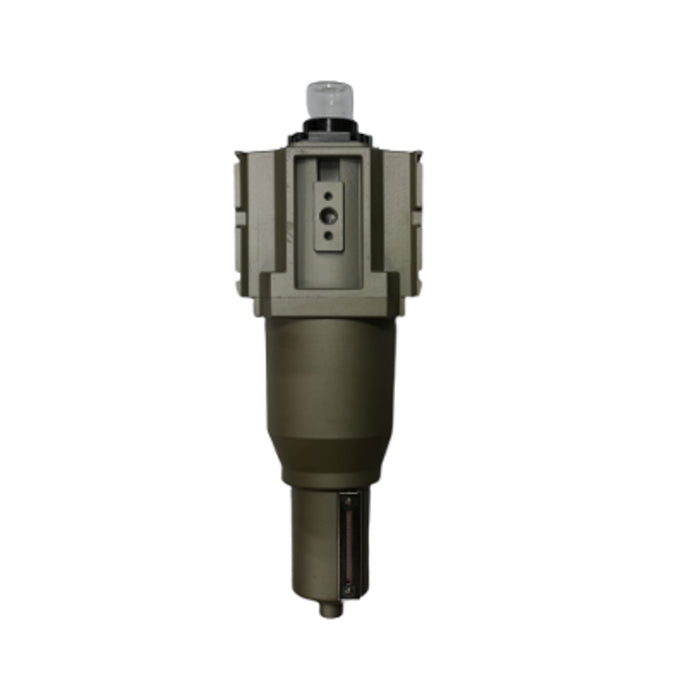

YSAL8000 - Pneumatic Air Lubricator Unit (Stainless Steel)
YSAL8000 - Pneumatic Air Lubricator Combination Unit
Bore No. | 10, 12, 16 |
Port Size | 1 ¼, 1 ½, 2 |
Fluid |
Air |
Operating Pressure | 0.05 ~ 1 MPa |
Proof Pressure | 1.5 MPa |
Set Pressure Range | 0.05 ~ 0.85 MPa |
Ambient temperature | -5 ~ +60℃ |
Oil Capacity | 180 ml |
Minimum Flow for Oil Drip |
190 ℓ/min, |
Recommended Lubricating Oil | Class 1 turbine oil [ISO VG32] |
