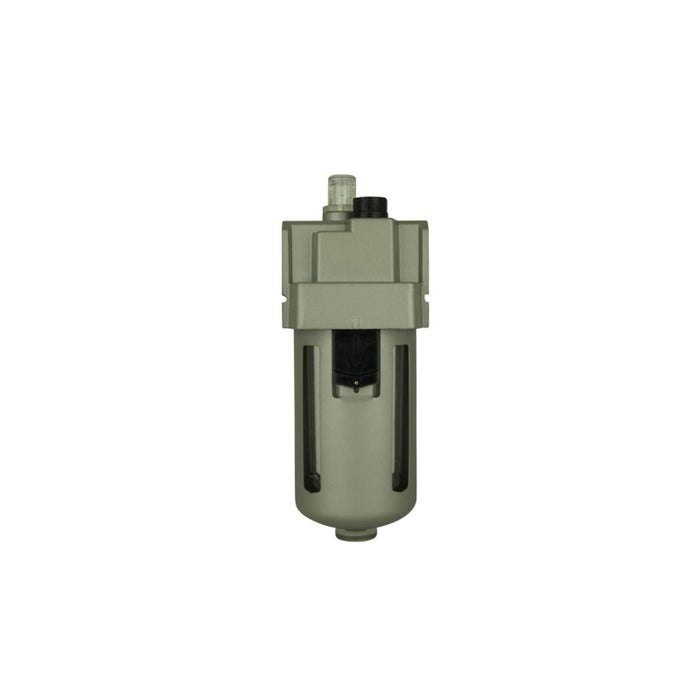

YAL3000 - Pneumatic Air Lubricator Unit
YAL3000 - Pneumatic Air Lubricator Combination Unit
YAL Pneumatic Air Lubricator Series ensure proper lubrication of tools for optimum performance and protection.
| Bore No. | 02, 03 |
| Port Size | 1/4, 3/8 |
| Fluid |
Air |
| Operating Pressure | 0.05 ~ 1 MPa |
| Proof Pressure | 1.5 MPa |
| Set Pressure Range | 0.05 ~ 0.85 MPa |
| Ambient temperature | -5 ~ +60℃ |
| Oil Capacity | 55 ml |
| Minimum Flow for Oil Drip | Port Size 1/4: 30 ℓ/min, 3/8: 40 ℓ/min, |
| Recommended Lubricating Oil | Class 1 turbine oil [ISO VG32] |
