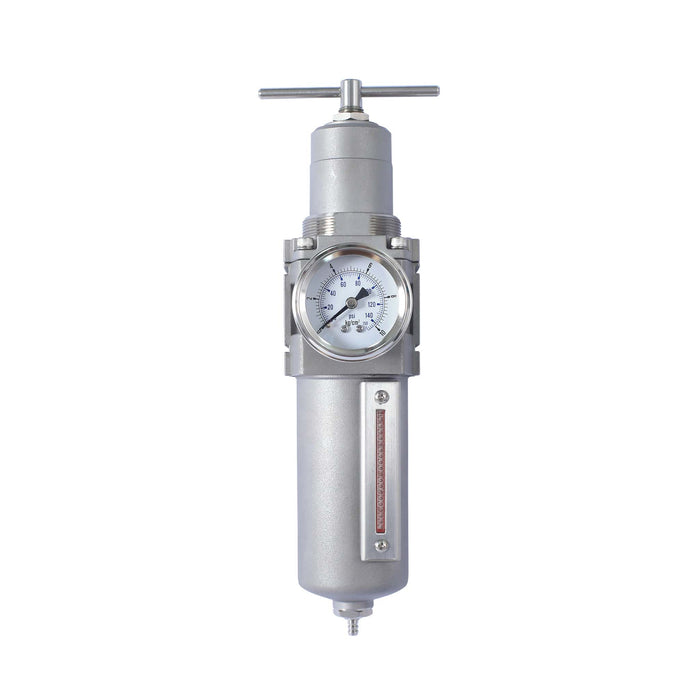

YSAW3000 - Filter Regulator Combination Series (Stainless Steel)

YSAW3000 - Pneumatic Air Filter, Air Regulator, Combination Unit

YSAW Series provides an air filtration and air regulation solution for your Pneumatic System. YSAW contains an Air Filter that removes harmful pollutants and contaminants from your air supply and an Air Regulator that provides stable pressure and airflow, utilizing a locking adjustment knob to prevent accidental setting changes.

Bore No. 02, 03
Port Size 1/4, 3/8
Fluid
Air
Operating Pressure 0.05 ~ 1 MPa
Proof Pressure 1.5 MPa
Set Pressure Range 0.05 ~ 0.85 MPa
Ambient temperature -5 ~ +60℃
Filter Element Standard: 40μm Option: [5μm, 20μm]
Attachment Pressure Gauge
